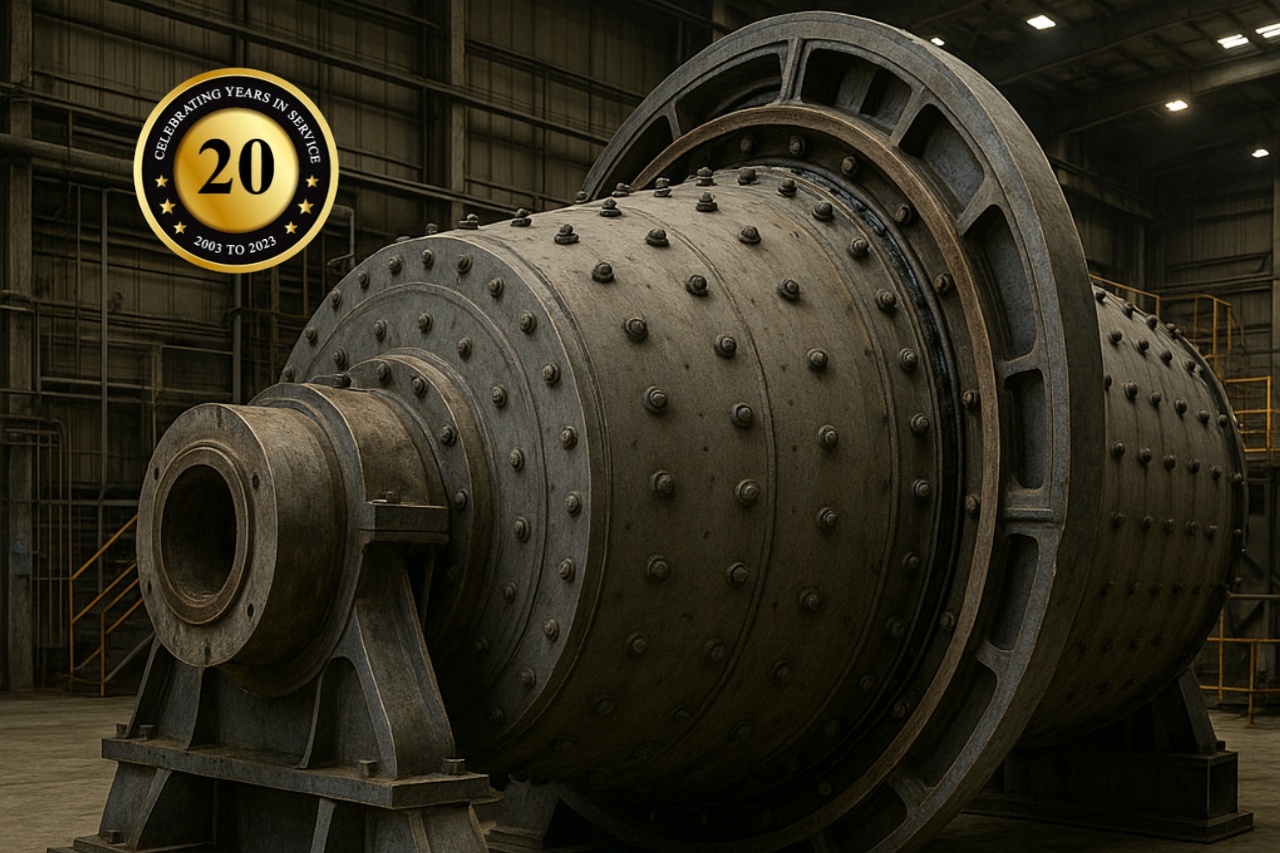

What Does Grinding Mill Repair Include?
Grinding mill repair is a structured, highly technical process designed to restore your mill to safe, reliable and efficient operation. It typically includes a full inspection, safe shutdown and isolation, partial or full strip-down of the mill, repair or replacement of worn parts (such as liners, bearings, trunnions, gears and drives), precision alignment (often using laser tools), reassembly, lubrication system checks, and final testing under load.
Why Grinding Mill Repair Matters
In a mining or heavy industrial plant, grinding mills sit at the heart of production. When they run correctly, you benefit from:
-
Consistent throughput
-
Predictable recovery
-
Stable, controlled energy use
When they don’t, you risk:
-
Hours or days of lost production
-
Unplanned breakdowns and emergency call-outs
-
Safety hazards around rotating equipment
Regular inspections, planned shutdowns and structured mill maintenance reduce unplanned downtime and extend equipment life. A disciplined repair and maintenance strategy is always more cost-effective than running equipment to failure.
1. Inspection and Condition Assessment
Every professional grinding mill repair starts with a detailed inspection. The aim is to understand the true condition of the mill before any tools are applied.
Typical inspection tasks include:
-
Visual inspection of the mill shell, heads and trunnions for cracks, corrosion or distortion
-
Checking liners for wear patterns, loose or broken bolts and lost lifter profiles
-
Inspecting the feed and discharge ends for blockages, excessive wear or impact damage
-
Measuring girth gear and pinion tooth contact patterns, backlash and wear
-
Assessing trunnion bearings, lubrication film, oil condition and seal integrity
-
Measuring vibration, temperature and noise levels during operation
A thorough inspection often identifies developing issues early enough to address them during a planned shutdown, rather than waiting for a costly emergency failure.
2. Safe Shutdown, Isolation and Access
Before any work begins, the mill must be made safe. This includes:
-
Controlled shutdown of the mill and associated equipment
-
Lockout and tagout (LOTO) of electrical and mechanical energy sources
-
Verification of zero energy and safe isolation
Access systems are then put in place, including:
-
Man-doors and safe entry points
-
Work platforms and scaffolding
-
Certified lifting points and rigging arrangements
On large ball and SAG mills, specialised tools and lifting equipment are required to handle heavy components such as liners, trunnion housings, gears and motors. Proper planning at this stage reduces risk, protects personnel and shortens the duration of the shutdown.
3. Disassembly and Cleaning
Once the mill is isolated and safe to work on, disassembly and cleaning can begin:
-
Removal of guards, covers and access panels
-
Removal and sorting of old liners, lifters and fastening hardware
-
Draining or isolating lubrication and hydraulic systems where required
-
Cleaning of all critical components to expose cracks, wear or other damage
Clean components are far easier to inspect accurately. Proper cleaning helps reveal hairline cracks, fretting, misalignment and other mechanical issues that can be missed on dirty, contaminated surfaces.
4. Component Repair and Replacement
Component repair and replacement is the core of grinding mill repair. Depending on the condition assessment, the scope can include the following areas.
Liners and Internal Wear Parts
-
Replacement of shell, head and discharge liners
-
Correct torqueing and re-torqueing of liner bolts
-
Optimisation of liner profile to improve throughput and reduce power draw
Trunnions, Shell and Heads
-
Trunnion journal repair or replacement
-
In-situ machining or metal-spray rebuild of worn bearing surfaces
-
Crack repair (where viable) or replacement of damaged shell sections or heads
Bearings and Bearing Housings
-
Replacement or overhaul of trunnion bearings
-
Repair or replacement of housings, seals and lubrication lines
-
Verification of bearing clearances and correct alignment
Girth Gear, Pinion and Drive Train
-
Inspection and repair of gear and pinion tooth surfaces
-
Setting correct backlash, contact pattern and run-out
-
Alignment and repair of motors, gearboxes and couplings
Specialist mill service providers use in-place machining, welding and heavy fabrication to restore components as close as possible to original equipment manufacturer (OEM) tolerances.
5. Precision Alignment and Balancing
Even slight misalignment can have serious consequences:
-
Accelerated gear and bearing wear
-
Increased vibration and noise
-
Higher power draw for the same tonnage
Precision alignment is therefore a critical part of any grinding mill repair. Laser alignment and other high-accuracy methods are typically used to align:
-
Motor to gearbox
-
Gearbox to pinion
-
Pinion to girth gear
-
Mill shell and trunnions to the foundation and base plates
Accurate alignment extends component life, reduces vibration and helps the mill run smoothly and safely at design speed.
6. Lubrication, Hydraulics and Support Systems
A grinding mill is only as reliable as its supporting systems. During repair and overhaul, technicians will typically:
-
Flush and refill lubrication systems with clean, specified oil
-
Replace filters, seals, hoses and oil lines where required
-
Check hydraulic jacking systems, mill brakes and related controls
-
Test interlocks, limit switches and other safety devices
Well-maintained lubrication and hydraulic systems are essential to prevent bearing and gear failures and form a key part of a predictive maintenance strategy.
7. Reassembly, Commissioning and Testing
After all repairs and replacements are complete:
-
The mill is reassembled and all fasteners are torqued to specification
-
Guards, covers and safety devices are refitted and function-checked
-
The mill is slowly turned and then started under no-load conditions
-
Load is increased in stages while temperatures, vibration, lubrication pressures and noise levels are monitored
Only once the mill operates smoothly at normal load and speed is it returned to full production.
8. Reporting and Future Maintenance Planning
A professional grinding mill repair always concludes with proper documentation, which may include:
-
A detailed report of defects found and repairs completed
-
Alignment, wear, vibration and temperature measurements for future comparison
-
Recommendations on operating practices and the next inspection or service intervals
This information feeds into your plant’s predictive maintenance program, helping you schedule future work before failures occur and turning unplanned stoppages into shorter, well-controlled shutdowns.
Who Is SAMCAW Field Services?
SAMCAW Field Services (Pty) Ltd is a South African specialist in the installation, maintenance and repair of:
-
Mine winders
-
Grinding mills
-
Crushers
-
Thickeners
-
Apron feeders
Based in the Vaal Triangle and serving mines and heavy industry across the region, SAMCAW has been operating since 2003. Their experienced supervisors, artisans and technicians understand the realities of on-site conditions, tight shutdown windows and stringent safety requirements.
SAMCAW focuses on:
-
Safe, compliant work on live industrial sites
-
Minimising downtime during shutdowns
-
Delivering reliable, long-term performance from critical rotating and static assets
Their track record spans projects in mining, steel, sugar and other industrial sectors throughout South Africa.
Need Professional Grinding Mill Repair? Contact SAMCAW
For planned shutdowns, emergency mill repairs or full grinding mill service packages, contact SAMCAW Field Services:
Telephone:
-
+27 16 421 2219
-
+27 16 422 6694
-
+27 79 499 6767
Email:
Whether you run ball mills, SAG mills or other critical rotating equipment, SAMCAW Field Services can help you get back online faster and keep your plant running safely, efficiently and reliably.
